ABB Power Systems

Executive Summary

ABB is developing next-generation transformers that are smart, connected, industrial IoT devices.

Key Challenges

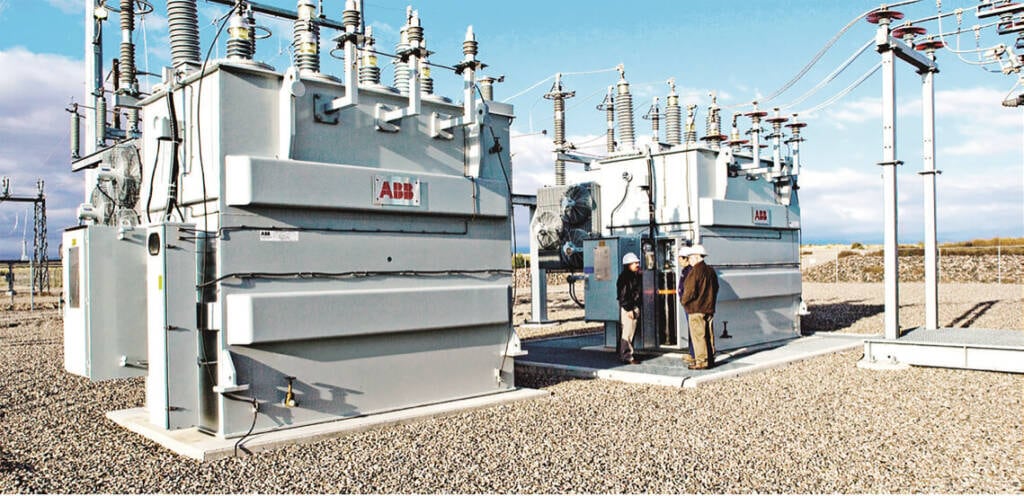

• Large transformers on the electrical power grid are complex devices with numerous sensors that capture performance and device health data.
• Historically, that data has remained inside the device unless captured by a manual download process.
• ABB developed next-generation transformers that are smart, connected, industrial IoT devices. This required a major upgrade in the software resident in the transformers’ embedded computers.

Solutions

ABB engaged VividCloud to architect, design, and develop a new software platform to convert these transformers into IoT devices.

A new CoreTEC system

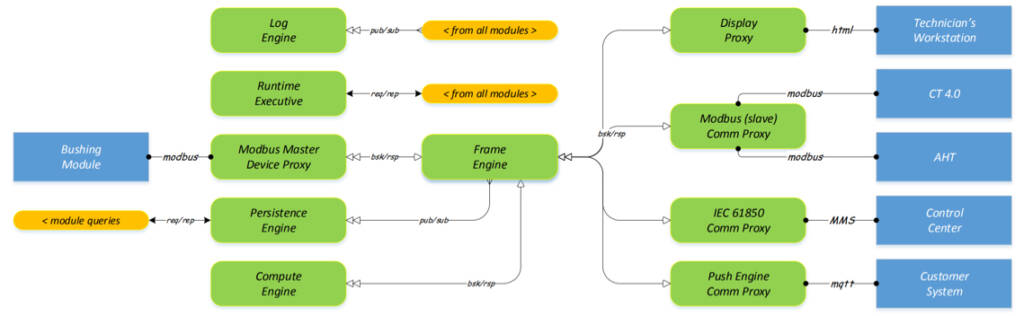

Designed with an architecture that includes a Runtime Executive, License Agent, Persistence Engine, Logging Engine, Algorithm Engine, and proxies of devices to enable the persistence of data.

A new UI application

Allows operators to configure, control, and monitor the transformers.

New ways to manage data

The new CoreTEC system receives data from numerous sensors and sources, aggregates it as necessary, stores timestamped data in relational and time-series databases, performs local analysis and analytical calculations, and sends the data to remote servers for storage.

And new ways to communicate that data

The aggregation and persistence engines allow the CoreTEC system to communicate with SCADA systems, embedded devices, and remote storage and compute platforms using multiple communication paths, such as the Modbus, DNP3, RS-485, and 61850 industrial protocols, and the MQTT message-based protocol popular with IoT systems.

Modern deployment packaging

The project also required firmware development of the Ubuntu-embedded Linux board support package. In addition to modifications of several device drivers and bootstrap components, Yocto was used for deployment packaging.

Power transformers as IoT Devices

The client’s large class of power transformers are now smart, connected, IoT devices.

End Results

The new CoreTEC software was successfully deployed after 9 months of development, at a cost dramatically lower than the client had estimated for an internally-developed effort.

It was immediately deployed to over 30 customers in a pilot program. No serious issues or feature gaps were discovered during this comprehensive and intensive pilot program.
